ANGLE

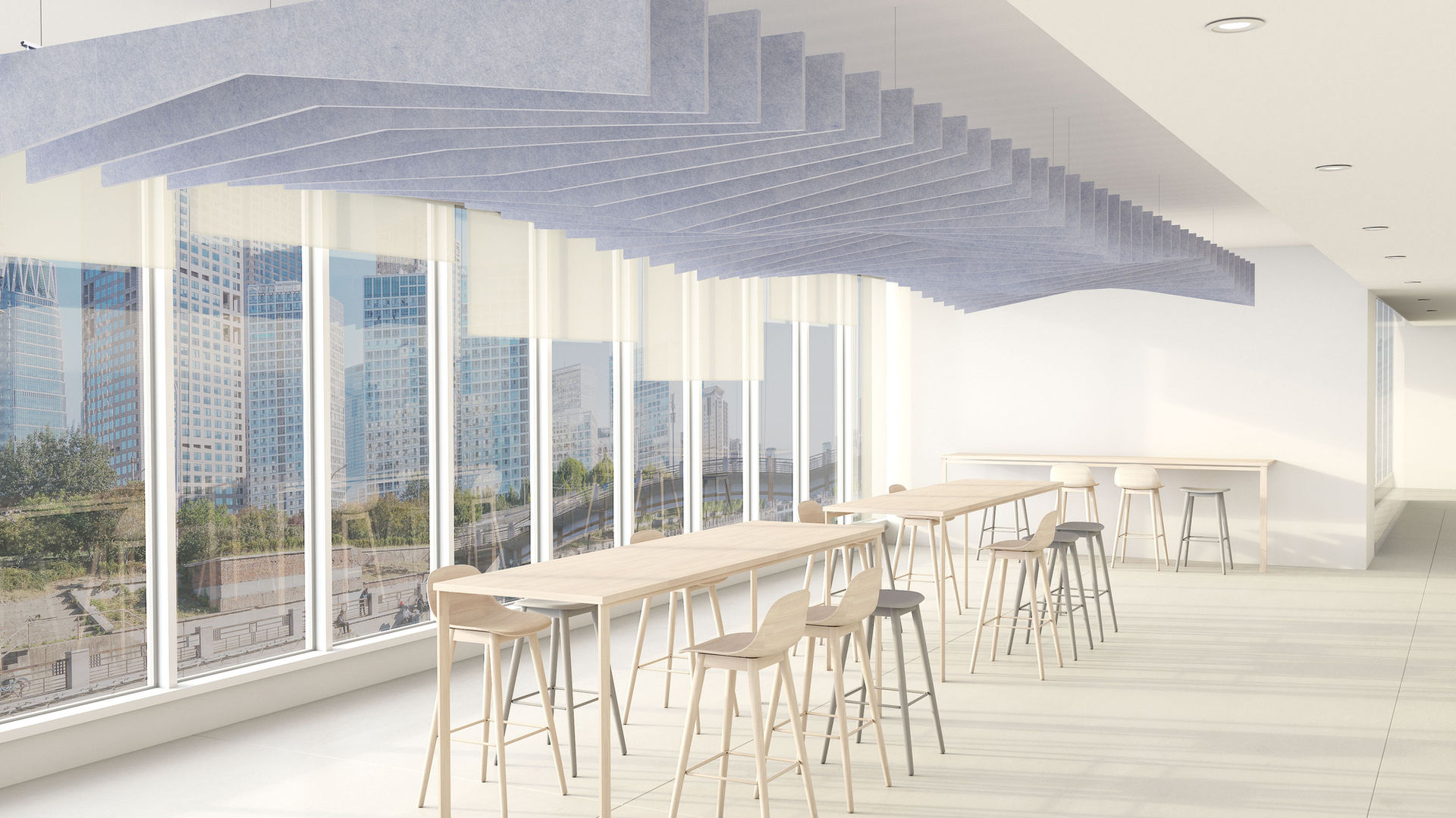

Angle Baffle is the stunning result of combining waves with angular lines. Assembled in the form of a cloud, each system can be effortlessly hung from the ceiling.
Product Information
Specifications
Composition
100% polyester fibre
Fire Rating
• ASTM E84 Class A
• CAN/ULC-S102.2-10
VOC Emissions
CDPH (CA 01350)
NRC
0.70 (J 12 mm), 0.90 (J 18 mm)
SAA
0.72 (J 12 mm), 0.88 (J 18 mm)
Sustainability
• 100% recyclable
• LBC Red List free
• Contributes to LEED certification
• Free of toxic substances and of off-gassing
• Made with ~60% recycled content from plastic water bottles
Dimensions
SKU | Width (mm) | Height (mm) | Thickness (mm) |
|---|---|---|---|
ANG-BF-Cxx-274-305 | 2745 | 400 | 12, 18, 24 |
ANG-BF-S01-274-040 | 2745 | 400 | 12, 18, 24 |
ANG-BF-S02-274-037 | 2745 | 375 | 12, 18, 24 |
ANG-BF-S03-274-035 | 2745 | 350 | 12, 18, 24 |
ANG-BF-S04-274-032 | 2745 | 325 | 12, 18, 24 |
ANG-BF-S05-274-030 | 2745 | 300 | 12, 18, 24 |
ANG-BF-S06-274-030 | 2745 | 300 | 12, 18, 24 |
ANG-BF-S07-274-032 | 2745 | 325 | 12, 18, 24 |
ANG-BF-S08-274-035 | 2745 | 350 | 12, 18, 24 |
ANG-BF-S09-274-037 | 2745 | 375 | 12, 18, 24 |
ANG-BF-S10-274-040 | 2745 | 400 | 12, 18, 24 |
Downloads
Acoustic Properties
NRC:
0.70 (J 12 mm), 0.90 (J 18 mm)
SAA:
0.72 (J 12 mm), 0.88 (J 18 mm)
* The above values reflect the acoustic properties of the product as tested in accordance with ASTM C423-09a using Type J mounting.
Colour Options
18 mm
Pure White
SP 07
Ivory
SP 77
Orange
SP 46
Sunflower
SP 05
Aquamarine
SP 73
Krypton
SP 30
Beige
SP 04
Yam
SP 28
Chartreuse
SP 43
Pale Teal
SP 74
Urban Grey
SP 79
Sandstone
SP 12
Wild Currant
SP 48
Desert Sage
SP 78
Sky Blue
SP 25
Pumice
SP 11
Mid Grey
SP 37
Plum
SP 72
Green
SP 10
Navy
SP 01
Warm Grey
SP 76
Graphite
SP 03
Red
SP 08
Forest Green
SP 17
Midnight Blue
SP 19
Cool Grey
SP 36
Black
SP 13
Blush Pink
SP 81
Dark Turquoise
SP 71
Purple
SP 50
12 & 24 mm
Pure White
SP 07
Ivory
SP 77
Black
SP 13
